Steyr Scout Tips and Tricks
(Page 1)

These pages contain some tips and tricks to help you get the most out of your Steyr Scout Rifle. They have been submitted by Scout owners or the factory and are published here for your enjoyment.

These tips and recommendations are furnished with the understanding that you use them at your own risk. No warranty as to their usefulness or accuracy is expressed or implied. Neither SteyrUSA, nor Steyr Mannlicher, AG, nor anyone else accepts any responsibility or blame for any damages, or if things don't work right, or if you damage your rifle in any way. Before doing any work with the rifle insure that the rifle is unloaded and that all magazines are removed.

Another good source for Steyr info on all manner of Steyr firearms is the Steyr Club Forum at www.steyrclub.com.

If you discover a idea or product that you think would benefit other Steyr Scout owners please email your idea by clicking here. and I'll consider it for posting here along with a credit line. Because this page was getting quite large I have broken it up into 2 pages for faster loading


As previously mentioned I am not a dealer for Steyr and I can't really provide any help in obtaining Steyr products.  However, I do usually have a supply of many of the critical parts (no magazines or adapters) for the Scout and SBS action rifles.  If you have questions about tune up work on the bolt or you are in desperate need of parts click here to see what I have available and then E-mail me and  I will try to help you.


Coming Soon...
(Keep your fingers crossed and keep breathing)

I am working on putting together an unofficial maintenance  manual for the Steyr Scout that will include many of the tips from these pages as well as additional detailed maintenance instructions.  If I get my other projects completed I hope to be able to offer this sometime in 2012.  Feel free to send chocolate, single malts, or money to encourage me, or come out here and help me.


On this page

| A .376 5 rd butt carrier | An Alternative IER Scope | Scout Manufacture Dates | Production Changes | Improved Bolt Cam | Screws |

| Oops! The Bolt Shroud Turned Too Far |

  | Replacement Steyr Scout Manuals | Lubrication | Bolt Handle Modifications | Bipod Repair | Case for the Steyr Scout | Slings & Swivels |

| Leupold QRW & PRW Cross Slot Rings | Carrying Pouches for Magazines | Scope Ring Tool for Steyr Mounts |

| Smoothing Up Bolt Travel | Cleaning Supplies Storage | Talley Scope Mount Rings Available |

| "Tactical" Scout Bolt Handle ModificationsMounting a Scope with the Steyr Rings |

| Opening the Storage Compartment | Dealing with Light Hits | Easing Bolt Lift | Trigger Adjustment |

Page 2 contains the following subjects

Left Handed Cartridge Carrier Modification,   Ammunition Warning,   Steyr Scout Zeroing Target,  Cartridge Carrier Looseness, Cartridge Carrier Screw Modification,  Cleaning Rod Guide,   Leopard Light, Sighting Trick,  Stock Spacer Removal,  Firing Pin Spring Adjustment,  Bolt Collar Alignment,  Screw Tightening Specifications,  Bolt Manipulation Technique, Sling Installation,  Scope Lens Covers, and  Reserve Magazine Retention

| Visit Page 2 of Tips & Tricks |


A .376 5 rd Butt Carrier

Steyr doesn't make a 5 rd butt carrier for the .376 cartridge and the holders for 308/7-08/243 rounds have a reputation for looseness.  They can however be modified to work perfectly with the .376 round by microwaving the carrier for a few seconds  and while  still (slightly) soft simply push five .376 cases firmly into it and allow to cool.

Thanks to Peter Moran for this tip.


An Alternative IER Scope

A correspondent who wears progressive lens glass was having problem being able to focus with the Leupold IER scope which has a non-adjustable eye piece.  A solution was found in Nikons 2X "Monarch EER scope (#6562 inmatte black) which has an eye placement range of 10.5 to 26.4 inches and has an adjustable eye piece focus. By adjusting the focusing eye piece he was able to get proper stock weld and see sharply with the scope.

Thanks to Richard Ryals for this tip.


Manufacture Dates

To determine the year of manufacture look for a 3 character code on the barrels just in front of the stock and refer to the table.

Month

Year #
Codes

Jan

E

1

W

Feb

L

2

K

Mar

N

3

R

Apr

B

4

F

May

S

5

M

Jun

Z

6

H

Jul

G

7

Y

Aug

P

8

T

Sep

I

9

D

Oct

C

0

O

Nov

V



Dec

A



Production Changes

I am frequently asked what changes have been made to the Steyr Scout since it was first offered.  While the factory is kind of mum on this, as far as I know the following changes have been slipstreamed since the Steyr Scout was first introduced. They are listed in rough order but  I do not know the exact dates or serial number of introduction.

NOTE
THERE IS NO PROVISION BY THE FACTORY OR DISTRIBUTORS TO UPDATE RIFLES IN THE FIELD.
SO PLEASE DO NOT BUG THEM.

 IF YOU HAVE ANY QUESTIONS CONTACT ME BY
clicking here.

Flat chrome with logo
Flat chrome w/o logo
Flat slick black w/o logo
Round chrome
Round "slick" black
Round dull black

Square 3 position short spring with nut
Square 5 position short spring with nut
Square 1 position long spring
Round 2 position short spring
Round 3 position short spring
Round 1 position long spring


Improved Bolt Cam

An improved design bolt cam was quietly introduced.  This helps with the bolt lift force issue, especially on rifles with the non-adjustable firing pin springs.  It IS NOT officially available for retrofit on older rifles.

You can check your cam for the type you have by holding a straight edge along the long slope on the cam.  The old cams are perfectly straight while the improved cam has a noticeable "hump."  If you have a problem with the bolt lift  contact me by clicking here as I occasionally have some of these in stock..  I do not provide these for individual fitting as they need some fitting and a special tool is needed to safely compress the spring on the non-adjustable spring models.  Contact me for further details.


Screws

Having had some correspondence from some folks who have lost screws, the following are the screw sizes for the major screws on the Scout.

Action Screws M6 x 30 mm and M6 x 40 mm - 1.0 pitch
External Shroud screws M5 x 10 mm, .8 pitch
Bolt casting set screws M4 x 2 mm, .7 pitch, pointed tip

In addition the following are the torque specs for the Scout.

WARNING!  DO NOT OVER TIGHTEN!

Action Screws or Shroud Main screws 70-80 in/lb 5.8 - 6.6 ft/lb 7.9-9 Nm
Shroud Screws (external) 61 in/lb 5.1 ft/lb 7 Nm
Barrel Lock Nut 220 in/lb 18.3 ft/lb 24.9 Nm
Barrel Extension Housing 880 in/lb 73.3 ft/lb 99.4 Nm
Front receiver "nut" (should not be removed) 88 in/lb 7.3 ft/lb 10 Nm
Scope Mount Cross Screws* "snug" "snug" "snug"
* Insure that cross bolt is in contact with the front edge of the rail's slot before tightening

Oops! The Bolt Shroud Turned Too Far

I get enough correspondence on this that I guess a "tip" is needed.  If the bolt shroud is allowed to turn too far counter clockwise it can be difficult to turn it back to the correct position due to the steepness of the cam surfaces in that position.  You may want to have someone give you a hand.

  1. Place the bolt on a flat surface with the handle in contact with the surface and the bolt shroud hanging over the end of the surface.

  2. Press in and hold the shroud latch (that little "button").
  3. Take a deep breath, grunt, and rotate the shroud back into position--with the square projection of the shroud in line with the bolt handle.  DO NOT use pliers!
  4. Relax and have a cold one! Repeat 100 times, "I'm not going to do that again!"
Oops! Press this and hold Grunt! Ah!



...98 - I'm not going through that again! 99 - I'm not going through that again! 100 - I'm not going through that again!

This "problem" has become so common that Steyr now has a neat little plastic wrench that was, for a time at least, included with new Scouts.

Bolt wrench (6k jpg)

I am currently out of these wrenches

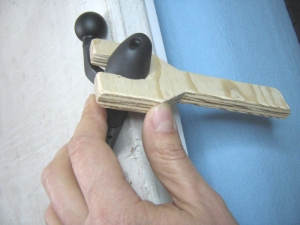

A correspondent recently sent in a design for a makeshift bolt tool.  Just take half-inch thick plywood, and cut a notch 13/16" of an inch wide and about 1 1/4"  deep.   Then with the bolt handle resting on a table, you just twist the shroud clockwise back to its original position--the tool holding the latch in.

Thanks to Stefan Jetchick for this tip.


Replacement Steyr Scout Manuals

If you are in need of an original owners manual for your Steyr Scout, I can provide a copy in PDF format of the original GSI manual.  It is a 450K file.  I also now have a PDF version of a general Steyr manual that covers the Tactical Elite and the Ultra Light.  It is a very large file (1.4 MB) and may be blocked by some ISPs if sent as an e-mail attachment.  You must have Adobe Acrobat 5.0 or higher to read these files.

If you want a copy of both manuals on CD along with  the trigger adjustment and some other Steyr documents in MS Word and pdf formats you can request the "Scout manuals package"  send US$10 cash, check, or MO to

J. C. Schaefer
1365 Saddleback Drive
Cottonwood, AZ 86326
USA


Lubrication

While everyone seems to have their favorite lube I have found that the best lube for the Steyr Scout seems to be properly applied TW25B or SLIP EWL.  For more information on TW25B see Mil-Comm's web site at http://www.mil-comm.com.  For iinformation on Slip EWL see http://www.slip2000.com.

Click here for information on how and where to lubricate your Scout or other SBS based rifles.


Bolt Handle Modifications

Many people do not care for the flattened bolt handle of the standard Steyr Scout.  While in Europe the factory will swap handle assemblies, that option has generally not been available in the US although as of 2004 Steyr USA has had some available but they are fitted with the big SSG cone shape knob like the knob in the picture below.  For availability and  installation of the "round knob bolt handles," contact Jack Riddle at

Steyr Arms, Inc.
PO Box 840
Trussville, AL 35173
Phone: (205) 467-6544

Current production US Scout appear to be coming through with the round handle.   As an example of what can be done the photo below shows a big head bolt knob from Badger Shooters Supply that has been welded to a cut off flat handle.  While I personally think that the assembly is a bit ungainly but it does show what can be accomplished with a little bit of ingenuity.

Modified SS bolt handle (19k jpg)

Thanks to Steve Berke for this idea

For information on replacing the large round or "SSG type knobs see the section on "Tactical" Scout Bolt Handle Modifications" below.


Bipod Repair

The bipod on the Steyr Scout is fairly rugged but it is not designed for "GI Joe" type use.  There have been some reports of the pivot pin breaking and the factory has come up with a fix.  This fix involves trimming off the broken pivot stub and fitting an aluminum stud to the bipod head.

bipod pivot pin replacement (16k jpg)

Repaired bipod pivot, unfitted pin, original bipod pivot.

If you have experienced a broken bipod pivot pin and have been unable to get it fixed via the importer contact me by clicking here.  I have a limited number of these pins and instructions for replacement available for $15 including postage.  They should be fitted by a competent gunsmith or machinist.  Because of the limited number of these pins on hand please don't request one unless you have a broken bipod.


Gun Case for the Steyr Scout

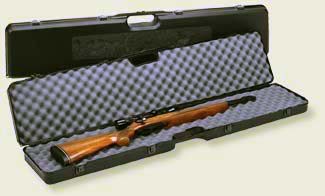

The original case furnished with the "Jeff Cooper" package left a bit to be desired as it looked like a chainsaw case.  Doskocil  made two nifty cases that seem tailored for the Steyr Scout.  They were their  "Special Edition" Single Rifle Cases, item #10480 or #10488.  These cases hold a single scoped rifle up to 48" and feature recessed handles, deep molded valance and live action hinges and are 471/2" x 81/2" x 31/2" inner dimensions.  The #10481 had a game scene on the outside and metal latches while the 10480 was a plain case with slide locks.  Plano now makes a similar case, their Plano "Gun Guard Special Edition Double Rifle Case" but it holds two rifles.  A Steyr branded version of the single rifle case is currently available from Steyr Arms at http://www.steyrarms.com/store/index.php/cases/rifle-case.html.


Slings and Swivels

Most of the currently shipping Steyr Scouts seem to be coming without slings or swivels.  The Millett part number is SS00002 for a pack of 2 swivels and you will need to order 3 swivels.  The original Pachmayr flush swivels will fit the Millett studs on the Steyr Scout but the current versions will not fit.

For Ching Slings I highly recommend Andy Langlois www.shottist.com  andy (at) shottist (dot) com  Tell Andy I sent you!  He also has the Millett swivels in stock.  Click here to view some of his current offerings.


Leupold QRW & PRW Rings

Leupold has recently announced that their QRW and PRW rings are now OK'd for use on the Steyr Scout's STANAG rail.  The new rings utilize a square cross bar insert that fits the cross slots of the rails deeply and won't peen the lips of the cross slots.  The cross bolt is a little narrower than the 4 mm STANAG cross slot.  Care needs to be taken to insured that the cross bolts are firmly against the front of the cross slots when installing them.  The QRWs are quick release and the PRW are not.  Both hold their zero on removal.  At $58 for the 1" rings and $70 for the 30 mm rings they are the best buy for Steyr Scout owners.  Click here for pictures and more details.


Carrying Pouches For Extra 5 Round Magazines

mag pouch (5k jpg)A handy pouch for carrying extra 5 round Scout magazines is available from Eagle  Industries.  Visit their web site at: http://www.eagleindustries.com for more details.  They are listed under "belt ammo pouches."  Their model AP-U is the perfect size to hold a single 5-round mag, and the AP-G is a double unit and will hold two magazines. Both pouches attach to a military web belt with ALICE clips, have silent closures, and come in black, OD, and other colors.  Just the thing for all those extra magazines when you are running a field course.

Thanks to Ed Ruth for this tip.



Another source for 5 round magazine carriers is the compass pouches for the military ALICE equipment.  They are available from numerous surplus sources for about $3.00.  While not as fancy as the above they work just fine.

Thanks to Bruce Beckwith for this tip

Wilderness Tactical products makes a very nice dedicated pouch for the Steyr Scout 10 rd magazines.  http://www.thewilderness.com/storepinnacle/index.php?p=product&id=2781&parent=207








Tool For Steyr Scope Ring  Mounting Nuts

A very handy tool for the slotted nuts on the factory Steyr Scout scope mounts can be made by slightly thinning the blade on the B-Square scope mount wrench for Ruger/Redfield mounts.  It is available from Brownells as part number 122-160-600 for $12.95.  It makes the removal of the factory mounts easier and helps prevent damage from slipping screw drivers.


Smoothing Up Bolt Travel

Bolt travel can be significantly smoothed up and binding eliminated on Steyr Scouts by slightly beveling the two opposite edges of the guiding pin protruding into the guide rail of the bolt. About 1/32" (1 mm) downwards, at about a 10 slope (basically just break and smooth the edges). You can also check the pin guide slot in the bolt body for any roughness too.  Just smooth up any noticeable burrs or rough edges.  Add some proper lubrication and you have a much smoother bolt without any binding. Steyr is reportedly implementing this tip on future production.

Bolt guide pin location (11k jpg) Pin location in trigger group [3k gif] guide pin detail [2k gif]
Bolt guide pin Location of guide pin in trigger group Modification

The pin is part of the trigger group. To access the guide pin remove the bolt and put the safety in the "fire" position.  The pin will stick up and can be seen just forward of the sear head. The edges can be beveled with a very fine long stone or diamond file.  Steyr specifically warns against removing the trigger assembly to do this as you will void your warranty.

This tip courtesy Steyr-Mannlicher


Cleaning Supplies Storage

A "Bore Snake" pull through gun bore cleaner fits nicely in the butt stock under the stock spacers if you fold it in properly. Thus stowed you can then carry a small oil bottle, a few patches, 4 & 5 mm Allen wrench for the action screws and the 10 round adapter, a 2.5 mm Allen wrench for the Steyr ring screws, and a short screw driver for the factory mounts, or a Torx head wrench for Leupold scope mounts, a nylon bristle brush with the handle trimmed down a few inches, and a small "Klean Bore" gun cloth with a little room to spare in the pistol grip compartment.  You might also want to stick a set of ear plugs in there too.

The Allen wrench solves the problem of being able to get the stock spacer/butt pad off to get to the "Bore snake".

This tip provided by Jonathan Sabia


Alternative Scope Mount Rings Available From Talley


Talley Manufacturing Company now has available scope rings specifically designed for use with the Steyr Scout. These steel rings are available for both 1" and 30 mm tubes and come in 3 heights; .350" (use with the Leupold scout scope), .450", and .550" (for mounting conventionally positioned scopes). The previously mentioned .300" high rings have been discontinued according to Talley as the .350" work with both the forward mounted and conventionally mounted position. Production versions will feature a matte finish to match the Steyr Scout. The Talley .35" rings will mount the Leupold scout scope approximately .14" higher than the factory Steyr "low" rings.

The rings are of the vertically split design and incorporate a removable lug specifically designed, from Steyr blueprints, that deeply and tightly fit the slots of the Steyr Scout's rail to prevent slot peening. (This is a common occurrence with other makes of "Weaver" type mounts whose cross bolts do not set deeply enough.) While not "quick detachable" they should handily fill the need for rings that properly fit the Steyr Scout without breaking your bank account.

The rings retail for $114.95 in any height or diameter and are available from Talley.

Because of differences in manufacturing tolerances Talley cannot say which heights are needed for a particular scope. However, Talley will exchange your set for a different height at no cost (you pay the postage) if the original rings are returned in unblemished condition.  An approximate guide is that in the conventional position the .350" rings will handle up to a 50 mm objective, the .450" up to about  a 56 mm objective, and the .550" up to about a 60 mm objective.  These specs are not confirmed.

When installing Talley rings use a drop of Loctite on the screws to prevent them backing out under recoil and check them after shooting several rounds.

For further information contact Dave Talley at:

TALLEY MFG. INC.
9183 OLD NUMBER SIX HWY.
P.O. BOX 369
SANTEE, SC 29142
Voice: (803) 854-5700
Fax: (803) 854-9315
http://www.talleyrings.com/
E-Mail: talley@direcway.com

If you contact Talley Manufacturing please mention this site.

For more information and photographs of the  Steyr, Leupold, and Talley rings for the Steyr Scout and the Leupold Scout Scope visit the "Leupold" page by clicking here.


"Tactical" Scout Bolt Handle Modifications

The latest "Tactical" Scouts are fitted with a bolt with a more conventional shape and a large round knob.  The ball is about 1 inch and diameter and while it is easy to manipulate some folks feel the knob is a little too big and looks out of proportion to the rifle.  I am investigating making up some additional ones and will post availability here.  However, if you have access to a friendly machinist you can make your own of any size or shape you like. I have found that a knob about .80" to .9" in diameter works just as well and looks better.

To remove the original knob proceed as follows.

  1. Remove the firing pin assembly.
  2. Hold the bolt body in your hand with the bolt lever protruding between your fingers.
  3. Using a propane torch carefully and evenly heat JUST the ball until you feel the bolt lever begin to warm between your fingers.
  4. Clamp the ball between two pieces of wood and unscrew. (Standard right-hand thread) The factory ball is aluminum so do not use pliers to remove or you will damage it.
  5. Clean the threads with a mild solvent.

Have your friendly machinist make a new knob to your specifications. The threads are standard metric 8 mm Coarse (1.25 mm pitch). Just have your new knob so threaded--use a 6.75 (6.8) mm drill as a tap drill--and you are in business. See below for suggested dimensions.  A shaft length of about .25 - .3" works well.

The round knob bolt handle assemblies are spotty in their availability but you can call Steyr and check.   I occasionally get a couple in so you can click here for possible further information.  I also sometimes have some of the smaller "balls" (~.85") and some odd shaped ones in stock.


Mounting Steyr Scope Rings

Because of the unusual construction of the Steyr scope rings the factory initially considered a jig for mounting the scope. However, they found it easier to first slide the bases on the mounting rail.  Then align with the cross bolts / slots and apply a little bit of glue on both bearing surfaces and bed the scope on the bases in proper alignment and eye relief while the glue is still soft. Wait until the glue has dried, then slide off the assembly. Apply glue on the contact areas on the top of the scope / rings and clip on the rings, align them and tighten the 4 screws carefully from beneath.

This tip courtesy Steyr-Mannlicher

An alternative method that seems to work well is to place the scope on the rings and tightening them so they'll slide but still stay in place if not bumped too hard, placing everything on the rifle and aligning everything properly. Then very carefully slide the scope and rings off of the rifle and tighten the 8 screws in an alternating pattern all the while checking to make sure everything is square by placing the unit rings down on a flat surface.

This tip courtesy of Mark Avery


Opening the Storage Compartment

The butt stock of the Steyr Scout is fitted with a handy storage compartment in the pistol grip area.  However, it is difficult to open on most guns.  To open it you need to remove the reserve magazine and depress the square "button."  However, the button is quite stiff and you need to either use the tip of a bullet or a screw driver to fully depress it.  It has to be pushed inward a bit and toward the bottom of the pistol grip.  Once removed, inspect the button for burrs and lightly dress all edges of the button and the corresponding edges in the button hole in the stock with a very fine file to smooth up the release.  A very handy place to keep one of those flexible plastic cleaning "rods" and a small bottle of lubricant.


Handling Light Hit Problems

There have been reports of light hits with certain ammunition (primarily military surplus ammunition).  While most users do not encounter this problem, enough have to warrant its discussion.  Click here to read about solutions.


Easing Bolt Lift

Information on bolt lift is now located on the link dealing with "light hits."  Click here to go to that page.


Trigger Adjustment

I have had numerous requests for the trigger adjustment procedure. However, because of product liability issues (let us give thanks for all the lawyers) the factory and the importers have asked me to refrain from publishing the directions on the Internet.

The factory setting is 3.5 lb (56 oz) .4 lb (7 oz)

While it is nominally "user" adjustable, Steyr states that it should only be done by a qualified gunsmith and if you don't have a clue about what trigger adjustment entails you can screw things up.  They have requested that I obtain a "disclaimer" from anyone that I send the information to.

If you would like a copy of the proper procedure for adjusting the trigger you can email me by clicking here and sending me a disclaimer that states

  1. The info will be used for personal, non-commercial use only
  2. That you will not give it to anyone else.
  3. That you are solely responsible for any damages done by following the information provided.

and I will send you the information via email as an MS Word document.

If you want a copy of the trigger adjustment, manuals, and some other Steyr documents in MS Word and pdf formats you can request the "Scout manuals package"  send US$10 cash, check, or MO, along with the disclaimer, to

J. C. Schaeferon CD
1365 Saddleback Drive
Cottonwood, AZ 86326
USA

Overseas orders please contact me by clicking here for additional postage charges.

PLEASE INCLUDE YOUR MAIL ADDRESS SO I CAN CONTACT YOU IF I HAVE ANY
ADDRESS PROBLEMS AND TO LET YOU KNOW I HAVE SENT YOUR ORDER.
